2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface

Place of Origin : Guangdong, China

Outline : 118.5×84.7×5.2 mm

Viewing Area : 116.2mm×87.1mm

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Display Mode : Normally White, Transmissive

View Direction : free/all

MOQ : 500

Price : $4.6-5.2/pieces(MSP2401);$5.4-6.2/pieces(MSP2402)

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Brand Name : XXT

Model Number : YBN024GES-Q1(MSP2401)/YBR024GES-Q1(MSP2402)

Payment Terms : T/T

Operating_Temperature : -20°C to 70°C

Delivery Time : 30-45 days

Packaging Details : 16*15*6(cm)/36g

Color Gamut : 72 % of NTSC(Typ.)

Supply Ability : 5K/month

Drive System : a-Si TFT active matrix

Name : HDMI LCD Display

Contact Now

YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YBN024GES-Q1(MSP2401)/YBR024GES-Q1(MSP2402)

Type:

SPI Display

Display Size:

2.4 Inch

Supplier Type:

Factory

Highlight:

2.4-inch SPI Display

320*240 Resolution LCD Module

SPI Interface TFT Display

Product Description

YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320×240 Resolution and SPI Interface

High-performance 2.4-inch SPI display LCD module featuring 320×240 resolution and SPI interface for embedded applications.

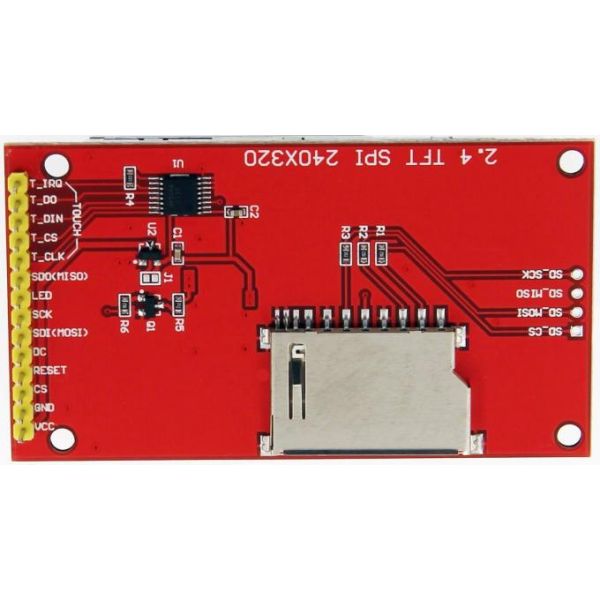

2.4 Inch HDMI LCD Display 320*240 HDMI LCD Module With SPI Interface

Product Features

2.4-inch color screen supporting 65K color display for rich color reproduction
320×240 high resolution with optional touch functionality
SPI serial bus interface requiring minimal I/O connections
Easy expansion capabilities with integrated SD card slot
Comprehensive sample programs and code libraries
Military-grade manufacturing standards for long-term reliability
Complete underlying driver technical support

Technical Specifications

Parameter	Specification
Size	2.4 inch
SKU	MSP2401 (No Touch); MSP2402 (With Touch)
Resolution	320×240 dots
Module Interface	4-wire SPI interface
Display Color	RGB 65K color
Active Area	36.72×48.96 mm
Dimensions	77.18×42.72 mm
VCC Power Voltage	3.3V / 5V
Power Consumption	0.57W
Logic IO Port Voltage	3.3V (TTL)
Weight	No touch: 26g / With touch: 36g

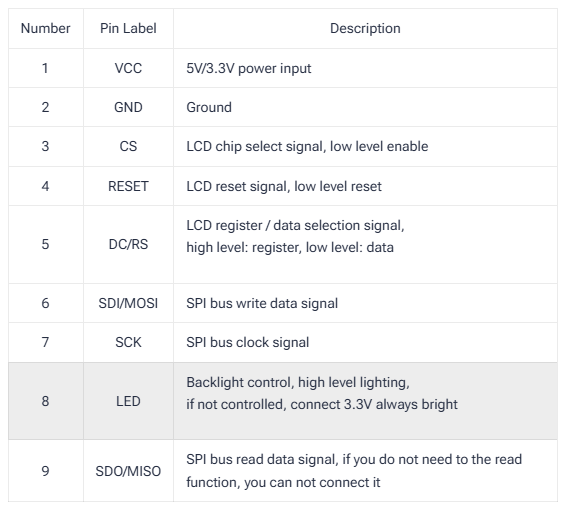

Interface Description

YBN022EGS-Q1 Interface Pinout

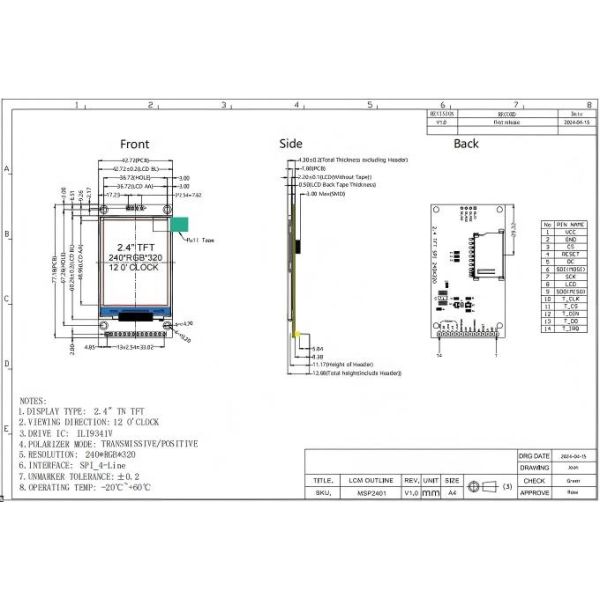

Product Dimensions
