2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

  • 1
  • 2
  • 3

Delivery Time : 30-45 days

Color Gamut : 72 % of NTSC(Typ.)

Lumens Degrees : 1000cd/m²

Storage Temperature : -30℃~80℃

View Direction : free/all

MOQ : 500

Response Time : 6ms

Viewing Area : 116.2mm×87.1mm

Model Number : YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)

Price : $4.8-5.4/pieces(MSP2807);$4.2-4.8/pieces(MSP2806)

Display Mode : Normally White, Transmissive

Display Color : Monochrome Black and White

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Controller Ic : SSD1316

Operating_Temperature : -20°C to 70°C

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Packaging Details : 16*15*6(cm)/43g

Outline : 118.5×84.7×5.2 mm

Supply Ability : 5K/month

Brand Name : XXT

Signal Interface : LVDS

Place of Origin : Guangdong, China

Drive System : a-Si TFT active matrix

Payment Terms : T/T

Contact Now

YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Document
Type:
SPI Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Highlight:

2.8 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module
High-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.

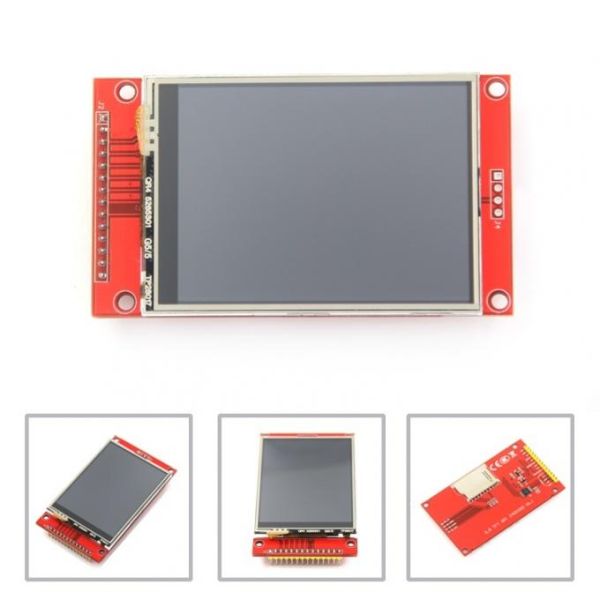

2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
Product Features
  • 2.8-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • SD card slot for easy experiment expansion
  • Comprehensive sample programs provided
  • Military-grade process standards for long-term stable operation
  • Complete underlying driver technical support
Technical Specifications
Size 2.8 inch
SKU MSP2806 (No Touch); MSP2807 (With Touch)
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 43.2×57.6 mm
Dimensions 50.0×86.0 mm
VCC Power Voltage 3.3V / 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver IC ILI9341
Power Consumption 0.31W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 34g / With touch: 43g
Interface Description
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

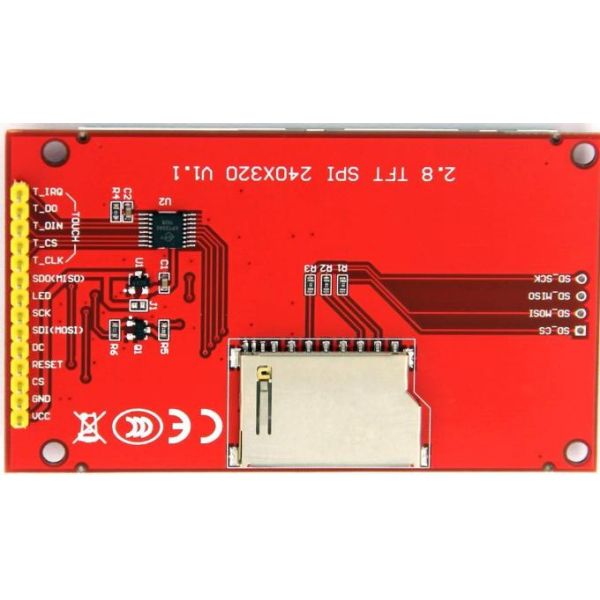

YBR028EGS-Q1 Interface Pinout
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
Product Dimensions
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
