8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen

Brand Name : XXT

Outline : 118.5×84.7×5.2 mm

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Price : $42-55/pieces

Supply Ability : 10K/Month

Display Mode : Normally White, Transmissive

View Direction : free/all

Delivery Time : 30-45days

Viewing Area : 116.2mm×87.1mm

Place of Origin : Guangdong, China

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Operating_Temperature : -20°C to 70°C

Model Number : YBC088JVH-Q1(With Touch)/YBN088JVH-Q1(Without Touch)

Packaging Details : 300*120*60mm/900g

Name : HDMI LCD Display

MOQ : 100

Payment Terms : T/T

Color Gamut : 72 % of NTSC(Typ.)

Drive System : a-Si TFT active matrix

Contact Now

XXT 8.8 Inch HDMI LCD Display with 480x1920 Resolution and IPS Full-Angle Panel for Computer Secondary Screen

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YBC088JVH-Q1(With Touch)/YBN088JVH-Q1(Without Touch)

Document

Type:

HDMI LCD Display 480x1920

Display Size:

8.8 Inch

Supplier Type:

Factory

Video Input:

HDMI

Brightness:

500+cd/m²

Highlight:

8.8 inch HDMI LCD Display

480x1920 resolution Computer Secondary Screen

IPS full-angle panel Long-strip Display

Product Description

XXT 8.8 Inch HDMI 480*1920 Long-strip Display

Computer secondary screen for real-time monitoring display with AIDA64 case DIY metal casing

Key Features

8.8-inch IPS full-angle panel with excellent viewing angles
HDMI video input compatibility
High resolution: 480 * 1920 pixels
Full protective shell with durable metal casing
Tempered glass panel with 6H hardness, scratch-resistant
Compatible with mainstream Mini PCs including Raspberry Pi, Banana PI, and BB Black
Raspberry Pi display support for Raspbian, Ubuntu, Kali, Win10 IoT systems
Computer monitor functionality supporting Win7, Win8, Win10, Win11 systems
Universal HDMI display connectivity

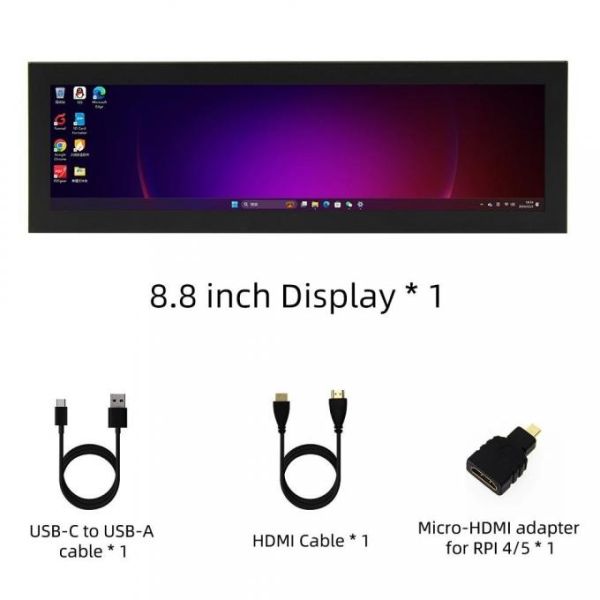

Product Image

8.8 Inch HDMI LCD Display 480x1920 IPS LCD Panel For Computer Secondary Screen

Technical Specifications

Parameter	Value	Unit	Parameter	Value	Unit
LCD Size	8.8	inch	Panel Type	IPS	-
Resolution	480 * 1920 (RGB)	pixels	Active Area	54.72(W) * 218.88(H)	mm
Number of Colors	16.7M		Outline Dimension	76.45(W) * 239.8(H) * 14.6(T)	mm
View Angle	170	deg	Luminance (TYP)	580 (No Touch) / 520 (Touch)	cd/m²
Contrast	800		Backlight Type	White LED
Backlight Current	160	mA	Operation Temperature	-20 ~ 70	℃
Pixel Pitch	0.114 * 0.114	mm	Storage Temperature	-30 ~ 80	℃
Video Input	HDMI		Power	Type-C
Voltage	5.0	V	Total Power (max)	3.8	W
Weight	375 (No touch) / 425 (Touch)	g	Part No.	MPC8801 (Touch) / MPC8802 (No Touch)

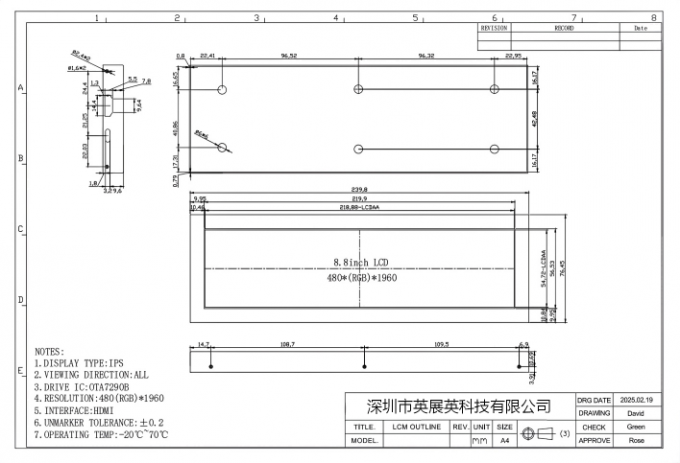

Product Drawings

Interface and Switch Configuration

Interface	Function Description
HDMI	HDMI interface for connecting motherboard and LCD monitor for HDMI transmission
Type-C	USB Touch / power supply connector for power supply and touch output (both functions identical, use either one)

Connection Demonstration
