IPS HDMI LCD Screen 10.1 Inch Raspberry Pi LCD Display 1024x600

Product Categories
Shenzhen Xinxiantong Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IPS HDMI LCD Screen 10.1 Inch Raspberry Pi LCD Display 1024x600

  • 1
  • 2

Color Gamut : 72 % of NTSC(Typ.)

Response Time : 6ms

Viewing Area : 116.2mm×87.1mm

Lumens Degrees : 1000cd/m²

Storage Temperature : -30℃~80℃

View Direction : free/all

Display Mode : Normally White, Transmissive

Display Color : Monochrome Black and White

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Payment Terms : T/T

Place of Origin : Guangdong, China

Price : $48-53/pieces

Controller Ic : SSD1316

Operating_Temperature : -20°C to 70°C

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Drive System : a-Si TFT active matrix

MOQ : 100

Supply Ability : 50K/Month

Packaging Details : 295*195*70mm/900g

Signal Interface : LVDS

Brand Name : XXT

Delivery Time : 30-45days

Model Number : YQX6-101

Outline : 118.5×84.7×5.2 mm

Contact Now

YQX6-101 10.1 Inch IPS HDMI LCD Display 1024×600 Resolution With Raspberry Pi Compatibility
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YQX6-101
Type:
HDMI LCD Display 1024×600
Display Size:
10.1 Inch
Supplier Type:
Factory
Video Input:
HDMI
Highlight:

10.1 Inch IPS HDMI LCD Display

,

HDMI LCD Display 1024×600

,

Raspberry Pi 10.1 Touchscreen

Product Description
YQX6-101 10.1 Inch IPS HDMI LCD Display with 1024*600 Resolution and Raspberry Pi Compatibility
Product Overview

The YQX6-101 is a high-quality 10.1-inch IPS LCD display featuring 1024*600 resolution and 5-point capacitive touch screen, designed for versatile applications including Raspberry Pi projects, computer monitors, and gaming consoles.

Key Features
  • 10.1-inch IPS display with wide viewing angles and excellent color reproduction
  • High-resolution 1024*600 display with crisp image quality
  • Toughened glass touch panel with 6H hardness for durability and scratch resistance
  • 5-point capacitive touch screen for responsive multi-touch operation
  • HDMI input interface for high-definition display connectivity
  • Built-in stereo dual speakers for audio playback
  • 3.5mm headphone output port for private audio listening
  • Dual-function dial switch for backlight brightness and volume adjustment
  • Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black development boards
  • Supports multiple operating systems including Raspbian, Ubuntu, Kali, and Windows 10 IoT
  • Works as a computer monitor with Windows 7/8/10 systems
  • Compatible with gaming consoles including PS4, XBOX360, and Nintendo Switch
  • CE and ROHS certified for quality assurance
Technical Specifications
Size 10.1 inch Screen Type IPS Screen
SKU MPI1001 Resolution 1024*600 dots
Backlight Adjustment Switching and adjusting of dial switch Touch 5 point capacitive
Volume adjustment Switching and adjusting of dial switch Touch IC GT9271
Power MicroUSB (5V/3A) Video Input HDMI
Speakers Power 8Ω 2W Audio Output Interface 3.5mm Audio Interface and Stereo speakers
Dimensions 236*145.57*(20±0.2)mm Packaging size 295*195*70mm
Active display 216.57*135.36mm Weight 900 g (including packaging)

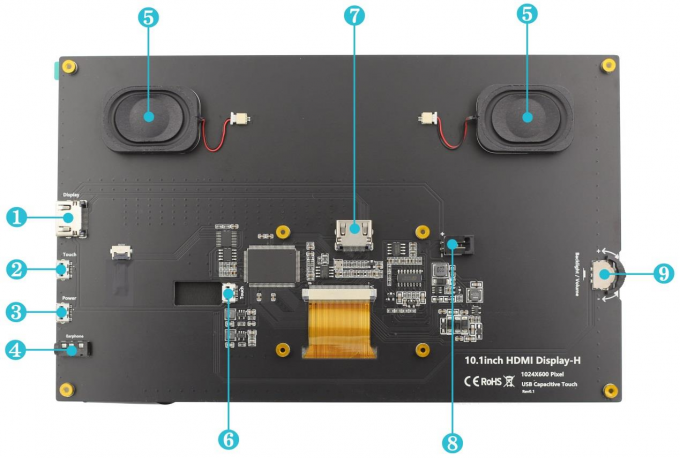

Interface and Key Description
IPS HDMI LCD Screen 10.1 Inch Raspberry Pi LCD Display 1024x600
  1. HDMI Interface: Connect to source devices (computers, etc.) using HDMI cable. Supports maximum resolution of 1920*1080.
  2. Touch Interface (MicroUSB): Connect to computers for touch functionality and power supply.
  3. Power Interface (MicroUSB): Dedicated power input connection.
  4. 3.5mm Audio Interface: Connect headphones or other audio output devices.
  5. Stereo Speakers: Built-in audio playback through slot and module connection.
  6. Touch Interface (MicroUSB): Connect to Raspberry Pi for touch functionality and power supply.
  7. HDMI Interface: Dedicated Raspberry Pi connection with maximum resolution of 1024*600.
  8. Fan Interface: Connection for cooling fan.
  9. Wheel Switch: Adjusts screen backlight brightness and volume. Default state adjusts volume (+/-). Press to switch to brightness adjustment mode.
