XXT 2.76 Inch Round HDMI LCD Display 480×480 IPS Screen with LED Backlight
IPS Circular Screen Module with Mini HDMI & USB Type-C Power
Product Overview
The YBN028JJH-Q1 is a compact 2.76-inch round IPS LCD display module designed for embedded display systems, DIY computer monitoring projects, Raspberry Pi applications, and multimedia display solutions. Featuring a 480*480 high-definition resolution, IPS full viewing angle technology, Mini HDMI video input, and USB Type-C power supply, the display delivers stable image performance and broad compatibility across multiple platforms.
Designed for secondary display applications, embedded systems, and compact smart display projects, this circular LCD module supports Windows systems, Raspberry Pi platforms, game consoles, and Linux-based environments.
Its compact round design and high-quality IPS panel make it suitable for desktop monitoring displays, industrial terminals, custom embedded projects, and creative display integrations.
Key Features
- 2.76-inch round IPS LCD display
- 480*480 high-definition resolution
- Mini HDMI video input
- USB Type-C power supply
- IPS full viewing angle technology
- Compact circular display design
- Wide platform compatibility
- Adjustable brightness control
- Suitable for embedded and DIY projects
- Low power consumption design
Product Specifications
| Item |
Specification |
| Model Number |
YBN028JJH-Q1 |
| Part Number |
MPC2809 |
| Display Size |
2.76 Inch |
| Display Type |
IPS LCD |
| Resolution |
480 * 480 Pixels |
| Active Area |
70.13 * 70.13 mm |
| Outline Dimension |
89.50 * 89.50 * 10.00 mm |
| Viewing Angle |
170° |
| Contrast Ratio |
800:1 |
| Brightness |
250 cd/m² |
| Backlight Type |
White LED |
| Backlight Current |
160 mA |
| Pixel Pitch |
0.1461 * 0.1462 mm |
| Video Input |
Mini HDMI |
| Power Supply |
USB Type-C / 5V |
| Maximum Power Consumption |
0.9W |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Weight |
175g |
| Certification |
CE / RoHS |
Product Advantages
Circular IPS Display Design
The 2.76-inch circular IPS screen delivers a modern and compact display solution for embedded systems, desktop monitoring projects, and creative display applications.
The IPS technology provides consistent color and image clarity across wide viewing angles.
High-Definition 480*480 Resolution
The 480*480 resolution provides clear image rendering and detailed display performance suitable for system monitoring, multimedia information display, and embedded GUI applications.
Wide Viewing Angle Performance
With a 170-degree viewing angle, the display maintains stable brightness and color consistency from multiple viewing positions, improving usability in interactive and embedded environments.
HDMI Plug-and-Play Compatibility
The Mini HDMI interface supports convenient video connectivity with multiple devices including:
- Windows PCs
- Raspberry Pi platforms
- Linux systems
- Game consoles
- Embedded development boards
Suitable for secondary display applications and multimedia integration projects.
USB Type-C Power Design
The display uses a separate USB Type-C power supply interface for simplified installation and stable power delivery.
The low power consumption design helps improve energy efficiency for embedded and portable applications.
Adjustable Brightness Control
Integrated brightness adjustment support allows users to modify display brightness levels according to different usage environments.
Long-press functionality also supports quick display on/off control.
Broad System Compatibility
Compatible with:
- General Office Software 7 / 10 / 11
- Raspberry Pi OS
- Ubuntu
- Kali Linux
- Windows IoT
Suitable for embedded display systems, DIY projects, industrial interfaces, and monitoring applications.

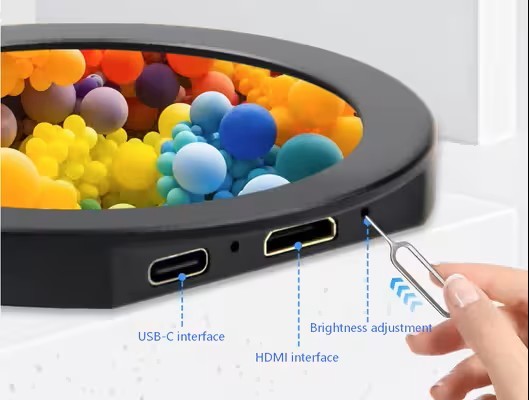

Interface Information
| Interface |
Description |
| Mini HDMI |
Video Signal Input |
| Type-C |
5V Power Supply |
| Brightness Button |
Brightness Adjustment & Display Control |
Product Applications
The YBN028JJH-Q1 is suitable for:
- Computer secondary displays
- Raspberry Pi display projects
- Industrial monitoring systems
- DIY PC case display integration
- Embedded display terminals
- Smart home control panels
- Multimedia display systems
- Linux embedded projects
- Creative display applications
- Compact information display systems
Industrial & Embedded Advantages
Compact Structural Design
The circular form factor supports creative embedded integration and compact installation environments.
Suitable for customized equipment and space-constrained systems.
Stable Long-Term Operation
Designed with industrial-grade operating temperature support for stable operation across different environments.
Energy Efficient Architecture
The low power consumption design helps improve efficiency for portable devices and long-duration operation systems.
Customization Support
Customization services available for OEM and embedded integration projects:
Hardware Customization
- Display structure adjustment
- Interface modification
- Cable customization
Branding Services
- Logo printing
- Silk screen customization
Display Optimization
- Brightness adjustment
- Display parameter tuning
- Driver configuration support
Integration Assistance
- Embedded installation guidance
- System compatibility support
- Development assistance
Quality Assurance
Each display module undergoes inspection and functional verification before shipment to support stable operation and reliable display performance.
Verification procedures include:
- Display quality inspection
- HDMI signal testing
- Brightness verification
- Power stability testing
- Packaging and transportation protection checks
OEM & Technical Support
Technical assistance and customization support available for long-term projects:
- Embedded integration support
- Display compatibility consultation
- Interface configuration assistance
- Development board integration guidance
- Hardware application support
Packaging & Logistics
- Professional export packaging
- Anti-static protective handling
- Secure transportation support
- International logistics solutions available
Supply Support
- Sample orders available
- Flexible MOQ support
- Stable production capacity
- OEM / ODM cooperation support
- Technical integration assistance
Why Choose YBN028JJH-Q1
The YBN028JJH-Q1 combines IPS full viewing angle technology, compact circular design, HDMI compatibility, and stable embedded performance in a versatile LCD display solution.
It is an ideal choice for Raspberry Pi projects, secondary monitoring displays, embedded systems, industrial terminals, and custom display integration applications requiring compact structure, reliable image performance, and flexible compatibility.
