IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications

Outline : 118.5×84.7×5.2 mm

Payment Terms : T/T

Supply Ability : 5K/month

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Display Mode : Normally White, Transmissive

View Direction : free/all

Viewing Area : 116.2mm×87.1mm

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Operating_Temperature : -20°C to 70°C

Model Number : PC173H

Name : Industrial Panel PC

Brand Name : XXT

Packaging Details : 590×445×100mm(5.7KG)

Color Gamut : 72 % of NTSC(Typ.)

MOQ : 300

Price : $248-288/pieces

Place of Origin : Guangdong, China

Drive System : a-Si TFT active matrix

Delivery Time : 15 work days

Contact Now

PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications

Product Overview

PC173H 17.3 Inch H Type Industrial Panel PC - Embedded Touch IP65 Fanless HMI Industrial Computer designed for robust performance in demanding industrial environments.

IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications

Key Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life

Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability

Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC)

Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions

Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch

Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness

I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options

Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input

Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available

24/7 Operation: Designed for continuous use with robust performance and long service life

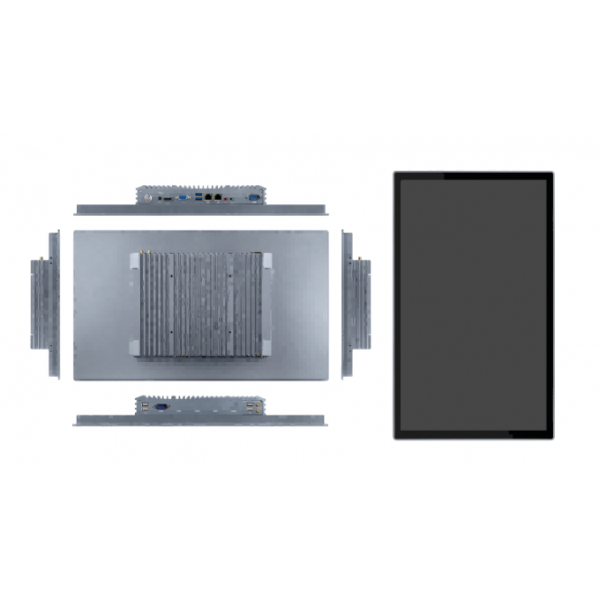

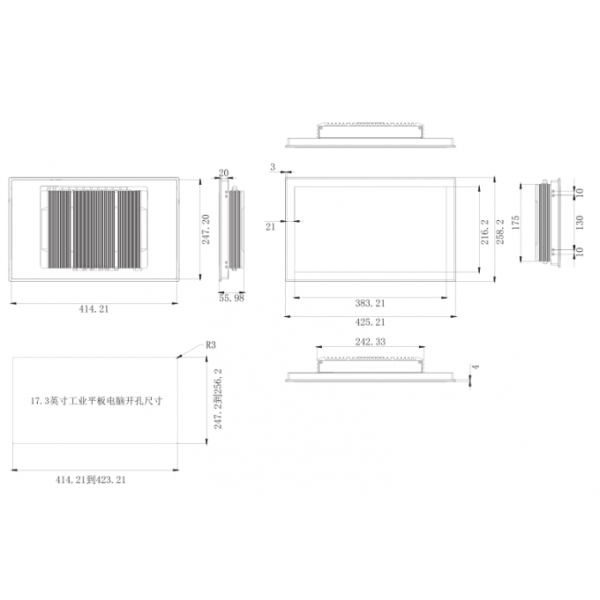

Product Views & Dimensions

Interface Configuration

Technical Specifications

CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory: 4G/8G/16G/32G/64G
Storage: 64G/128G/256G/512G/1TB/2TB
Touch Type: Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support: Windows 7/8/10, Linux, Android
LCD Display: 17.3" XGA TFT (1024*768)
Active Area: 383.21mm*216.2mm
Viewing Angle: 89° (L/R/T/B)
Brightness: 350 cd/m²
I/O Interfaces: 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions: 425.21*258.2*55.98mm
Power Input: DC 12V (9-30V optional)
Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
Tighten the long screws and nuts onto the snap fasteners.
Four clips are fixed at the threaded hole positions on both sides.
Tighten the long screws to secure the equipment in place.

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	QTY
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 * RS232; optional 6 * RS232/RS485
3	USB	Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
