17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2

Color Gamut : 72 % of NTSC(Typ.)

Response Time : 6ms

Viewing Area : 116.2mm×87.1mm

Lumens Degrees : 1000cd/m²

Storage Temperature : -30℃~80℃

MOQ : 300

View Direction : free/all

Payment Terms : T/T,

Place of Origin : Guangdong, China

Packaging Details : 590×445×100mm/5.4KG

Display Mode : Normally White, Transmissive

Display Color : Monochrome Black and White

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Brand Name : XXT

Supply Ability : 5K/month

Controller Ic : SSD1316

Operating_Temperature : -20°C to 70°C

Price : $180-232/pieces

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Delivery Time : 15 work days

Drive System : a-Si TFT active matrix

Signal Interface : LVDS

Model Number : PC170H

Outline : 118.5×84.7×5.2 mm

Contact Now

PC170H 17 Inch Industrial Computer with IP65 Fanless Design and 350 Cd/M2 Brightness for Industrial Monitoring

Detail Information

Place of Origin

Guangdong, China

Brand Name

xXT

Certification

CE/ROHS ..

Model Number

PC170H

Type:

Industrial Computer

Display Size:

17 Inch

Supplier Type:

Factory

Mounting Type:

Embedded

Packing Dimensions:

590×445×100mm

Net Weight:

4.5KG

Gross Weight:

5.4KG

Highlight:

17 Inch Industrial Computer

IP65 Fanless Industrial Panel PC

350 Cd/M2 Brightness HMI

Product Description

YZY PC170H 17 Inch Industrial Computer

IP65 Fanless HMI with 350 Cd/M² Industrial Touch Panel PC

The H Type Industrial Computer is an embedded touch panel PC with IP65 fanless HMI designed for industrial monitoring applications. Featuring CNC precision engraving construction with seamless, screwless design, this industrial tablet offers multi-touch capability and robust performance for demanding environments.

Series Configuration Options

Multiple display sizes: 10.1/10.4/11.6/12.1/13.3/15/15.6/17/17.3/18.5/19/21.5/23.8 inches
Various CPU options: J6412/N97/13/15/17 processors
Operating system support: Windows 7/Windows 10/Linux/Vxworks/QNX

Product Overview

17 Inch Embedded Touch Panel PC IP65 Fanless Industrial Computers 350 Cd/M2

Key Product Features

Precision CNC Milling: High-precision machining ensures superior sealing, reduced dust intrusion, and enhanced equipment stability and service life
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design for improved surface hardness and anti-interference capability
Full Aluminum Construction: IP65-rated front panel providing water and dust protection with excellent electromagnetic compatibility
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
Capacitive Touch: Full-flat, multi-point projected capacitive touch supporting full lamination, compatible with 5-wire resistive touch
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations
24/7 Operation: Designed for continuous use with robust performance and long service life

Product Views & Dimensions

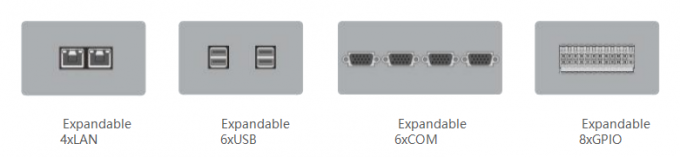

Interface Configuration

Technical Specifications

Specification	Details
CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	17" XGA TFT (1280*1024)
Active Area	338.92mm×271.34mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions	380.92×313.34×55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temperature	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

Tighten the long screws and nuts onto the snap fasteners.

Four clips are fixed at the threaded hole positions on both sides.

Tighten the long screws to secure the equipment in place.

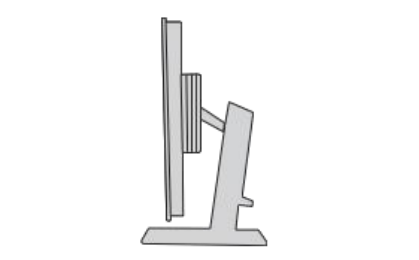

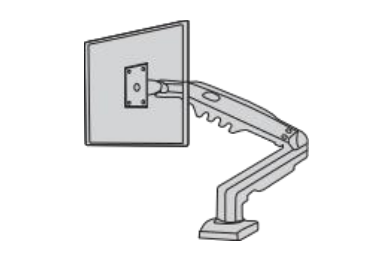

Alternative Mounting Options

Packing List

No.	Item	Quantity
1	17 INCH Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings & Operating Guidelines

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
