Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

Outline : 118.5×84.7×5.2 mm

MOQ : 300

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Delivery Time : 15 work days

Display Mode : Normally White, Transmissive

View Direction : free/all

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Price : $214-232/pieces

Payment Terms : T/T

Response Time : 6ms

Display Color : Monochrome Black and White

Brand Name : XXT

Operating_Temperature : -20°C to 70°C

Place of Origin : GuangDong, China

Supply Ability : 5K/month

Model Number : PC133M

Color Gamut : 72 % of NTSC(Typ.)

Packaging Details : 460 ×445 × 100mm/4.2KG

Drive System : a-Si TFT active matrix

Name : Industrial Computer Monitor

Viewing Area : 116.2mm×87.1mm

Contact Now

PC133M 13.3 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC

Product Overview

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

Place of Origin	Guangdong, China
Brand Name	XXT
Certification	CE/Rohs
Model Number	PC133M
Document	PC133M Datasheet.pdf
Type	Industrial Computer
Display Size	13.3 Inch
Supplier Type	Factory
Mounting Type	Embedded
Packing Dimensions	460 * 445 * 100mm
Net Weight	3.6KG
Gross Weight	4.2KG

Key Design Features

Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

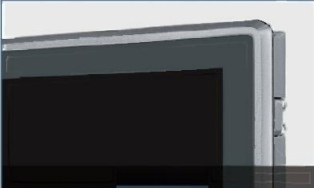

Thickened Frame Design

Waterproof Trough Design

Pre-installed Hidden Indicator Light

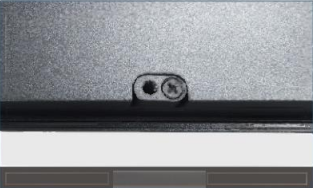

Integrated Molding Snap-on Connector

Product Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
24/7 Operation: Designed for continuous use with robust performance and long service life.

Product Views & Dimensions

Product Six Views

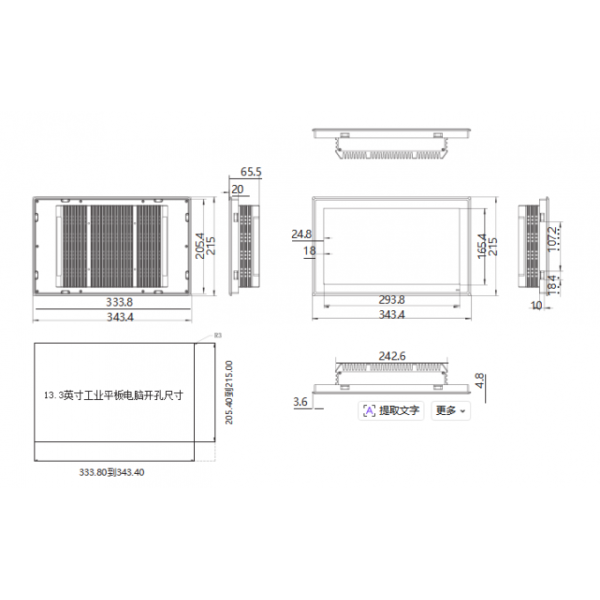

Product Dimensions

I/O Interface Configuration

Technical Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	13.3" XGA TFT (1280*800)
Active Area	293.8mm * 165.4mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2RJ-45, 2USB3.0, 2USB2.0, 1RS232/485, 5*RS232, Mini-PCIe slot
Dimensions	335.80 * 207.40 * 55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temperature	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

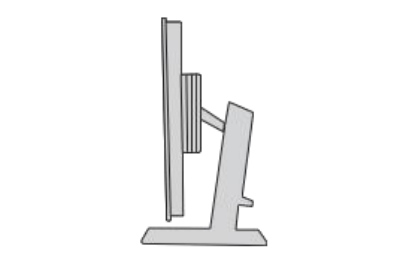

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	QTY
1	13.3 Inch Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 * RS232; optional 6 * RS232/RS485
3	USB	Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
