350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC

Outline : 118.5×84.7×5.2 mm

Place of Origin : Guangdong, China

Signal Interface : LVDS

Lumens Degrees : 1000cd/m²

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Display Mode : Normally White, Transmissive

View Direction : free/all

Viewing Area : 116.2mm×87.1mm

Controller Ic : SSD1316

Storage Temperature : -30℃~80℃

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Response Time : 6ms

Display Color : Monochrome Black and White

Model Number : PC 238H

MOQ : 300

Operating_Temperature : -20°C to 70°C

Supply Ability : 5K/month

Name : Industrial Computer Monitor

Brand Name : XXT

Color Gamut : 72 % of NTSC(Typ.)

Payment Terms : T/T

Price : $238-258/pieces

Delivery Time : 10 work days

Packaging Details : 600 * 445 * 120mm ; 7.2KG

Drive System : a-Si TFT active matrix

Contact Now

23.8 Inch IP65 Industrial Panel PC / Embedded Monitor IP65 Fanless HMI Monitor

Detail Information

Place of Origin

Guangdong, China

Brand Name

XXT

Model Number

PC 238H

Type:

Industrial Computer

Display Size:

23.8 Inch

Supplier Type:

Factory

Outline Dimension:

569.04mmX338.46mmX55.98mm

Packing Dimensions:

600 ×445 × 120mm

Net Weight:

6.5KG

Gross Weigh:

7.2KG

Warerproof:

Front Panel Protection: IP65 Rated

Highlight:

23.8 inch industrial panel PC

Embedded Monitor IP65

IP65 Fanless HMI Monitor

Product Description

23.8 Inch H Type Industrial Panel PC - Embedded IP65 Fanless HMI Industrial Intelligent Computer

350 Cd/M2 Industrial Computer Monitor 23.8 Inch Monitor Embedded PC

Product Features

Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
24/7 Operation: Designed for continuous operation with robust performance and long service life.

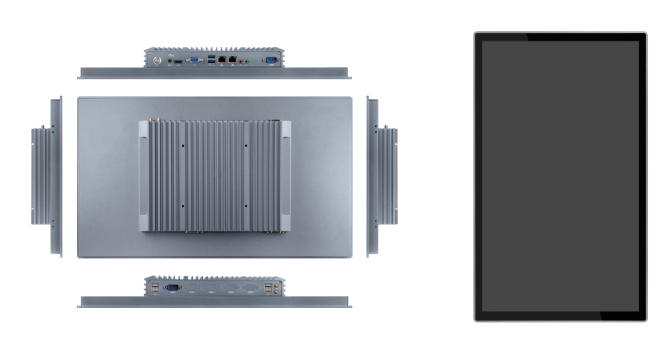

Six Views

Product Dimension

I/O Interface Diagram

Product Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support	Windows 7/8/10, Linux, Android
LCD Display	23.8" XGA TFT (1920*1080)
Active Area	527.04mm*296.46mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2×RJ-45, 2×USB3.0, 2×USB2.0, 1×RS232/485, 5×RS232, Mini-PCIe slot
Dimensions	569.04mm338.46mm55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	Qty
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 × RS232; optional 6 × RS232/RS485
3	USB	Default 4 × USB (2 × USB 2.0, 2 × USB 3.0); optional 8 × USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

1. This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

2. Do not place in humid environments to prevent condensation and component damage.

3. Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

4. Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

5. Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
