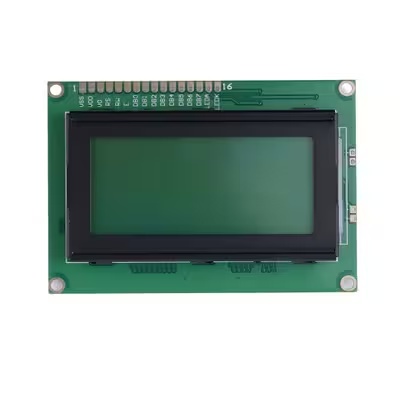

16x4 COB Monochrome LCD Module I2C Interface 87x60mm with ST7066 Controller IC
Product Overview
The XXT YMC1604SB-X01 is a reliable industrial-grade 16x4 Character LCD Module designed for embedded control systems, industrial equipment, instrumentation, and smart electronic devices. Featuring advanced COB (Chip-On-Board) construction and a high-contrast STN monochrome display, this module delivers clear character presentation, excellent durability, and long-term operational stability.
Equipped with an IIC (I²C) communication interface, the module significantly reduces wiring complexity and GPIO resource requirements, making it ideal for modern embedded applications where PCB space and interface efficiency are critical.
Available in multiple display color options, including Blue, Gray, and Yellow-Green, the YMC1604SB-X01 provides flexible visual solutions for a wide range of industrial and commercial applications.
Key Features
- 16 Characters × 4 Lines display format
- High-contrast STN monochrome display technology
- Integrated ST7066 or AIP31066 controller IC
- IIC (I²C) interface for simplified system integration
- COB (Chip-On-Board) structure for enhanced reliability
- Compact 87 × 60 mm module design
- Low pin-count communication architecture
- Stable performance for continuous operation environments
- Available in multiple display color configurations
- Suitable for industrial and embedded applications
- Easy integration with microcontrollers and development platforms
- Designed for long service life and dependable operation
Technical Specifications
| Parameter |
Specification |
| Model Number |
YMC1604SB-X01 |
| Display Format |
16 Characters × 4 Lines |
| Display Technology |
STN Monochrome |
| Display Type |
Transmissive |
| Controller IC |
ST7066 / AIP31066 |
| Interface |
IIC (I²C) |
| Construction |
COB (Chip-On-Board) |

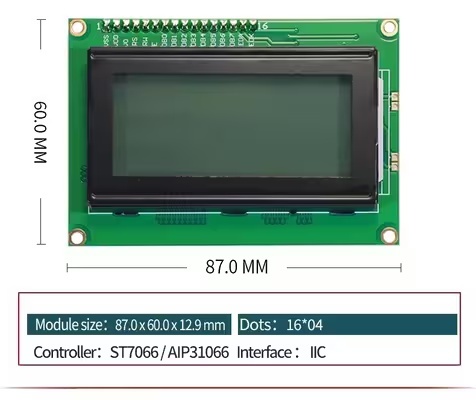

| Module Dimensions |
87.0 × 60.0 × 12.9 mm |
| PCB Dimensions |
87.0 × 60.0 mm |
| Viewing Area (VA) |
55.40 × 15.74 mm |
| Frame Width |
62.00 mm |
| Display Color Options |
Blue / Gray / Yellow-Green |
| Operating Type |
Character LCD Module |
