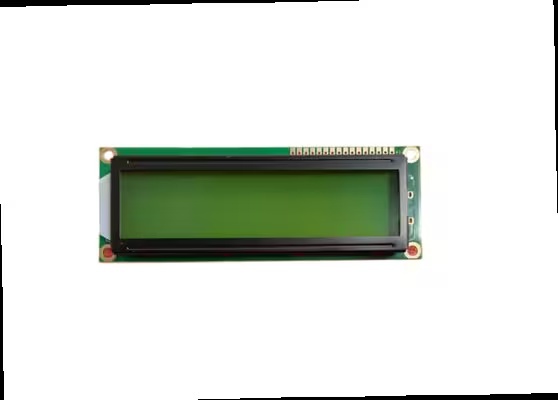

STN Monochrome LCD Display 1602B 16x2 COB LCD Module With ST7066 / 7065 Controller

MOQ : 500 pieces

Color Gamut : 72 % of NTSC(Typ.)

View Direction : free/all

Response Time : 6ms

Viewing Area : 116.2mm×87.1mm

Lumens Degrees : 1000cd/m²

Storage Temperature : -30℃~80℃

Display Mode : Normally White, Transmissive

Display Color : Monochrome Black and White

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Price : $1.43-1.99/pieces

Controller Ic : SSD1316

Operating_Temperature : -20°C to 70°C

Packaging Details : 12*7*5

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Delivery Time : 14-60 days

Model Number : YMC1602SB-X14

Outline : 118.5×84.7×5.2 mm

Brand Name : XXT

Place of Origin : GuangDong, China

Drive System : a-Si TFT active matrix

Payment Terms : T/T

Signal Interface : LVDS

Supply Ability : 10000 pieces

Contact Now

1602B 16x2 COB Character LCD Module STN Monochrome Display with ST7066/7065 Controller

Product Overview

The XXT YMC1602SB-X14 is an industrial-grade 16x2 character LCD module featuring COB (Chip On Board) technology and a high-contrast STN blue negative monochrome display. Powered by professional 7066/7065 driver ICs, it provides reliable, long-term performance for industrial, embedded, and consumer electronics applications.

Key Specifications

  • Display Format: 16 characters × 2 lines
  • Display Type: Monochrome STN Blue Negative, Transmissive
  • Driver IC: 7066/7065
  • Logic Supply Voltage: 5.0V DC
  • LCD Driving Voltage: 5.0V DC ±0.2V
  • Driving Method: 1/16 Duty, 1/4 Bias
  • Viewing Direction: 6 O'clock
  • Backlight: White LED, 10 mA
  • Operating Temperature: -20℃ ~ +70℃
  • Storage Temperature: -30℃ ~ +80℃
  • Interface: 8-bit Parallel (16-pin)
  • Module Dimensions: 122.00mm × 43.69mm × 13.4mm (W×H×T)
  • Viewing Area: 99.00mm × 23.99mm
  • Effective Display Area: 95.02mm × 20.18mm

Product Features

  • Clear, eye-friendly monochrome display with white dots on blue background
  • Dual driver IC 7066/7065 for stable performance and anti-interference
  • Standard 16-pin parallel interface, compatible with embedded control systems
  • 5V industrial-standard logic supply and LCD driving voltage
  • Optimized 6 O'clock viewing angle for front-facing operation
  • Integrated white LED backlight with uniform illumination, low power consumption
  • Wide operating temperature and storage range for reliable industrial use
  • Compact, precise mechanical dimensions for easy integration
  • COB structure ensures high reliability, vibration and drop resistance
  • RoHS compliant for environmental safety

Applications

  • Industrial control and monitoring panels
  • Portable measuring instruments and precision electronic meters
  • Smart home appliance interfaces and embedded systems
  • Automotive auxiliary displays and vehicle-mounted character screens
  • Medical and health monitoring devices
  • Office automation and consumer electronics displays
  • DIY electronics projects and development kits

Quality Assurance & Reliability

  • Every module undergoes rigorous testing to ensure stable, long-term operation
  • Designed for continuous industrial and commercial use
  • RoHS-certified for international market compliance

Shipping & Payment

  • MOQ: 1 piece (supports samples and small orders)
  • Payment Methods: T/T, Western Union, PayPal for small orders
  • Shipping: DHL, FedEx, UPS, China Post

Company Profile

Shenzhen XXT Technology, founded in 2022 in Shenzhen, China, specializes in LCD modules, touch modules, FPC boards, and other optoelectronic components. With a focus on industrial, medical, automotive, and consumer electronics, XXT provides high-quality products to clients worldwide.


If you want, I can also create a short, SEO-friendly version optimized for foreign trade platforms like e-commerce platform, Amazon, and your independent site, which highlights the product’s key features for faster buyer engagement.

Do you want me to do that next?
