YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module

  • 1
  • 2
  • 3

Delivery Time : 30-45 days

MOQ : 500

Color Gamut : 72 % of NTSC(Typ.)

Response Time : 6ms

Viewing Area : 116.2mm×87.1mm

Display Mode : Normally White, Transmissive

Display Color : Monochrome Black and White

Interface : RGB, SPI, MIPI, LVDS, or Parallel

Lcm Dimension : 34.60(H) X 47.80(V) X 1.90(T)

Model Number : YBC050PKH-Q1(MPI5005)

Supply Ability : 5K/month

Controller Ic : SSD1316

Operating_Temperature : -20°C to 70°C

Lumens Degrees : 1000cd/m²

Storage Temperature : -30℃~80℃

Place of Origin : Guangdong, China

Signal Interface : LVDS

Price : $8.2-9.3/pieces

Payment Terms : T/T

Packaging Details : 16*15*6(cm)/259g

View Direction : free/all

Brand Name : XXT

Drive System : a-Si TFT active matrix

Outline : 118.5×84.7×5.2 mm

Contact Now

Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBC050PKH-Q1(MPI5005)
Document
Type:
SPI Display
Display Size:
3.5 Inch
Supplier Type:
Factory
Highlight:

3.5 inch SPI Display

,

480*320 resolution LCD Module

,

Resistive touch TFT LCD Display

Product Description
YBR035JGS-Q1 3.5-inch SPI Module with 480*320 Resolution and Resistive Touch
This LCD module utilizes a 4-wire SPI communication interface with ILI9488 driver IC, delivering 320*480 resolution with optional touch functionality. The complete module integrates LCD display, backlight control circuitry, and touch screen control circuitry.
Product Features
  • 3.5-inch color screen supporting 16-bit 65K color display for rich color reproduction
  • 480*320 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O pins for display operation
  • SD card slot for easy experiment expansion and data storage
  • Comprehensive sample programs provided for rapid development
  • defense-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support available
Technical Specifications
Parameter Specification
Size 3.5 inch
SKU MSP3520 (With Touch) / MSP3521 (Without Touch)
Resolution 480*320 dots
Touch Resistive touch
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 48.96*73.44 mm
Dimensions 56.34*98 mm
Operating Voltage 3.3V / 5V
Power Consumption 0.62W
Weight No touch: 45g / With touch: 57g

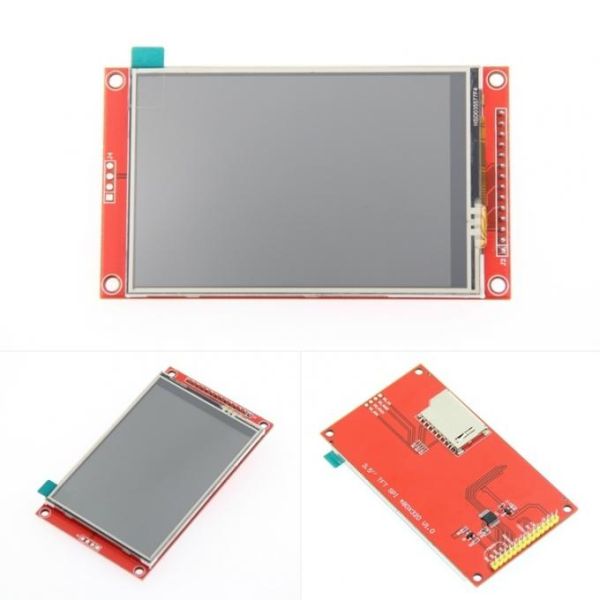

Product Appearance
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
Interface Description
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
