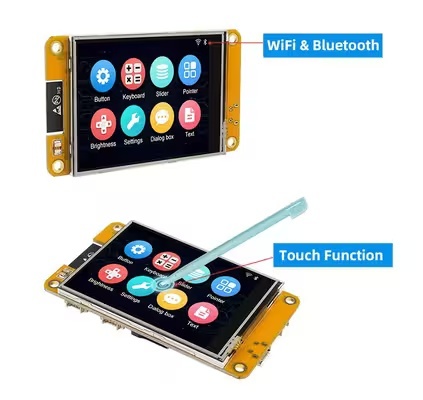

ESP32 2.4 Inch TFT LCD Display Module 240×320 WiFi Bluetooth Development Board
ESP32-WROOM-32 Development Board with 240×320 Resolution Color Screen, WiFi & Bluetooth
Product Overview
The ESP32-2432S024 is a compact, all-in-one 2.4-inch TFT LCD display module designed for IoT devices, HMI interfaces, educational projects, and rapid prototyping. Equipped with a built-in ESP32-WROOM-32 dual-core microcontroller, this module integrates WiFi and Bluetooth connectivity with a high-quality 240×320 color display.
The module provides an all-in-one development solution, including display control, optional capacitive or resistive touch, a TF card slot for storage expansion, and multiple general-purpose expansion interfaces. Factory-loaded demo programs allow immediate plug-and-play operation, accelerating development and reducing testing time.
It is compatible with Arduino IDE, ESP-IDF, and MicroPython development platforms, making it ideal for embedded system design, smart devices, and interactive applications.
Key Features
- 2.4-inch TFT LCD display with 240×320 resolution
- ESP32-WROOM-32 dual-core microcontroller
- Integrated WiFi and Bluetooth connectivity
- Optional capacitive or resistive touch interface
- TF card slot for storage expansion
- Multiple expansion interfaces for peripherals and sensors
- Factory preloaded demo programs for rapid testing
- Supports Arduino IDE, ESP-IDF, and MicroPython
- Compact and durable design for industrial, educational, and IoT projects
Technical Specifications
| Parameter |
Specification |
| Module Size |
74.4 × 42.9 mm |
| Effective Display Area |
48.96 × 36.72 mm |
| Display Type |
TFT LCD |
| Resolution |
240 × 320 pixels |
| Touch Options |
No touch / Resistive / Capacitive (optional) |
| Operating Voltage |
5V |
| Typical Power Consumption |
100 mA |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| Microcontroller |
ESP32-WROOM-32 dual-core |
| Connectivity |
WiFi + Bluetooth |
| Colors |
65K colors |
| Certification |
CE, RoHS |
Integrated Hardware Functions
The ESP32-2432S024 module provides multiple integrated circuits for comprehensive functionality:
- TFT LCD display driver
- Optional resistive or capacitive touch interface
- TF card interface for data logging and storage
- Multiple general-purpose I/O for peripheral connection
- Embedded WiFi and Bluetooth communication modules
Development Platform Support
- Arduino IDE
- ESP-IDF
- MicroPython
These supported platforms allow rapid development, testing, and deployment for educational, industrial, and IoT applications.

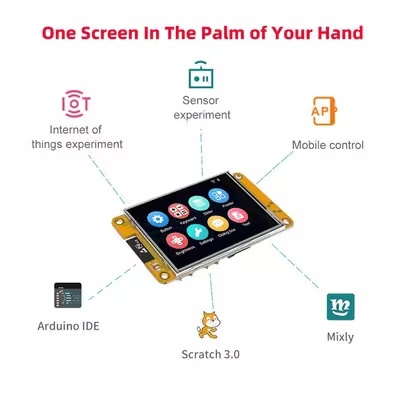

Applications
- IoT devices and smart home terminals
- Human-Machine Interface (HMI) panels
- Educational embedded system projects
- Industrial and laboratory prototyping
- Portable interactive devices
- Sensor monitoring and control systems
Advantages
- All-in-One Solution: Combines processing, wireless communication, display, and expansion interfaces into one compact module.
- Rapid Development: Factory-loaded demo programs simplify initial setup and testing.
- Flexible Expansion: Supports multiple interfaces for sensors, actuators, and additional modules.
- Reliable Performance: Industrial-grade operation with wide temperature range and long-term stability.
- Compact Design: Ideal for embedded applications and space-constrained devices.
Packaging & Delivery
- Anti-static packaging for safe shipping
- Flexible order quantities for small or bulk requirements
- Global delivery options available
Quality Assurance
Each module is strictly tested to ensure functionality and reliability, including:
- Display output verification
- Touch interface response
- WiFi and Bluetooth connectivity testing
- Electrical performance validation
- Interface inspection
Why Choose ESP32-2432S024
This 2.4-inch TFT LCD ESP32 module is ideal for developers and engineers seeking a compact, all-in-one platform for IoT, HMI, educational projects, and smart device prototyping. Its integrated WiFi/Bluetooth connectivity, optional touch support, and multiple expansion options make it a versatile choice for rapid development and industrial applications.
