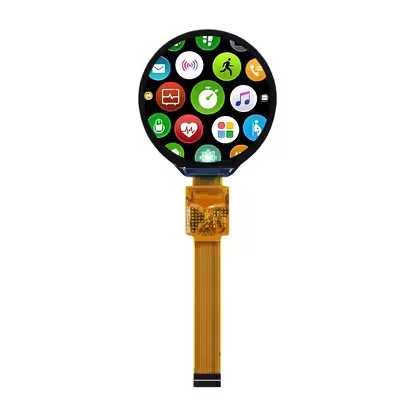

1.8 Inch Round TFT LCD Display 360×360 Resolution SPI Interface with Capacitive Touch Screen
360×360 Resolution IPS LCD Screen with 4SPI Interface and Capacitive Touch
Product Overview
The YVT018WV-C01 is a high-performance 1.8-inch round TFT LCD touch display designed for compact smart devices, industrial control systems, wearable electronics, and IoT applications. Featuring a 360×360 resolution, IPS full viewing angle technology, 4SPI display interface, and capacitive touch functionality, this module delivers clear image quality, responsive touch interaction, and reliable performance in space-constrained applications.
Built with a G+F (Glass + Film) capacitive touch structure and CST820 touch controller, the display provides smooth user interaction while maintaining a slim and lightweight design.
Key Features
- 1.8-inch round TFT LCD display module
- 360 × 360 high-resolution display
- IPS full viewing angle technology
- 4SPI display interface
- I2C touch interface
- G+F capacitive touch structure
- CST820 touch controller
- Normally black display mode
- 65K color support
- Glass cover lens with ≥6H surface hardness
- Compact and lightweight design
- Wide operating temperature range
Technical Specifications
| Item |
Specification |
| Model Number |
YVT018WV-C01 |
| Display Size |
1.8 Inch |
| Display Shape |
Round |
| Resolution |
360 × 360 |
| Display Technology |
TFT LCD |
| Display Mode |
Normally Black |
| Viewing Direction |
IPS Full Viewing Angle |
| Active Area |
45.684 × 45.684 mm |
| Module Dimensions |
54 × 54 × 3.09 mm |
| Brightness |
280 cd/m² (Typ.) |
| Color Depth |
65K Colors |
| Display Interface |
4SPI |
| Touch Interface |
I2C |
| Touch Technology |
Capacitive Touch (G+F) |
| Touch Controller |
CST820 |
| Cover Lens Hardness |
≥6H |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Certification |
CE / RoHS |
Product Advantages
High-Resolution Round Display
Featuring a 360×360 resolution in a compact 1.8-inch round format, the display provides sharp graphics, smooth icons, and detailed user interfaces suitable for modern smart device applications.
The circular display design offers a premium visual appearance for products requiring a distinctive and contemporary interface.
IPS Full Viewing Angle Technology
The IPS panel delivers consistent brightness and color performance from virtually any viewing direction.
Benefits include:
- Improved screen visibility
- Consistent color reproduction
- Enhanced user experience
- Suitable for multi-angle viewing environments
Responsive Capacitive Touch Control
The integrated G+F capacitive touch panel provides accurate and smooth touch interaction for modern graphical user interfaces.
Features include:
- Fast touch response
- Reliable operation
- Improved optical clarity
- Durable touch surface
Durable Glass Cover Lens
The display incorporates a reinforced glass cover lens with surface hardness greater than 6H, helping improve durability during everyday operation.
Benefits include:
- Enhanced scratch resistance
- Improved surface protection
- Better long-term appearance
- Reliable operation in demanding environments
Compact Design for Embedded Applications
The slim-profile structure makes the module suitable for space-limited product designs while maintaining excellent display performance.
Ideal for:
- Portable electronics
- Compact control panels
- Wearable devices
- Smart instrumentation
Interface Configuration
| Interface |
Description |
| 4SPI |
Display Signal Interface |
| I2C |
Capacitive Touch Communication |
| Power Supply |
Integrated Module Power Input |
The combination of SPI display communication and I2C touch control helps simplify hardware integration and reduce system resource requirements.
Application Areas
The YVT018WV-C01 is suitable for:
Smart Home Devices
- Smart thermostats
- Home automation controllers
- Smart switches
- Intelligent control panels
Industrial Equipment
- Portable industrial instruments
- Compact HMI systems
- Industrial monitoring devices
- Data collection terminals
Medical Electronics
- Portable diagnostic equipment
- Health monitoring devices
- Handheld medical instruments
IoT & Smart Devices
- Smart sensors
- Connected devices
- Wireless control terminals
- Embedded IoT products
Consumer Electronics
- Wearable devices
- Portable controllers
- Smart accessories
- Compact display products
Mechanical Design Benefits
Lightweight Structure
The compact module dimensions help reduce overall product size while maintaining excellent display quality.
Integrated Touch Solution
The display and touch panel are integrated into a single module design, simplifying product development and assembly.
Flexible System Integration
The SPI display interface and I2C touch interface support compatibility with a wide range of embedded processors and controller platforms.
Customization Services
To support different project requirements, customization options are available:
Display Customization
- Brightness adjustment
- Interface customization
- Display parameter optimization
Touch Customization
- Touch sensitivity tuning
- Cover lens customization
- Optical enhancement options
Mechanical Customization
- FPC design modification
- Connector customization
- Mechanical structure optimization
Branding Services
- Custom logo integration
- Private labeling
- OEM & ODM support
Quality Assurance
Each display module undergoes functional verification and quality inspection prior to shipment to help ensure stable performance and product consistency.
Inspection procedures include:
- Display performance verification
- Touch functionality testing
- Electrical parameter inspection
- Visual quality inspection
- Packaging protection verification
Packaging & Logistics
- Anti-static protective packaging
- Export-grade shipping protection
- Sample order support
- Flexible volume supply
- Global shipping solutions available
Why Choose YVT018WV-C01
The YVT018WV-C01 combines a round IPS display, capacitive touch functionality, compact mechanical design, and reliable embedded integration into a single display solution.
It is an excellent choice for smart home products, industrial control equipment, medical devices, wearable electronics, and IoT applications that require a modern circular user interface, responsive touch control, and dependable long-term performance.
