10.1 Inch HDMI LCD Controller Board with Capacitive Touch 5V Power LVDS Display Driver Board
HDMI LCD Controller Board with Capacitive Touch Support
Product Overview
The XXT YB101WSVL-P01 is a high-performance 10.1-inch LCD driver board designed for industrial display systems, embedded applications, and commercial touch display integration. Featuring HDMI signal input, LVDS display output, and multi-point capacitive touch support, the controller board delivers stable display performance and broad platform compatibility.
Supporting Windows, Android, and Raspberry Pi systems, the board is suitable for industrial terminals, smart control panels, embedded display projects, interactive systems, and customized monitor solutions.
Its compact structure, low standby power consumption, and flexible customization capability make it a practical solution for professional LCD integration projects.
Key Features
- 10.1-inch LVDS LCD driver board
- HDMI signal input support
- Multi-point capacitive touch functionality
- 5V DC power input
- Stable LVDS display output
- Capacitive touch signal transmission via USB Type-C
- Audio output support with headphone and speaker connections
- Compatible with Windows, Android, and Raspberry Pi platforms
- Low standby power consumption
- Suitable for industrial and commercial display applications
Product Specifications
| Item |
Specification |
| Model Number |
YB101WSVL-P01 |
| Brand |
XXT |
| Display Size |
10.1 Inch |
| Resolution |
1024 × 600 |
| Signal Input |
HDMI |
| Display Interface |
LVDS |
| Touch Type |
Multi-Point Capacitive Touch |
| Touch Interface |
6-Pin FPC |
| Touch Signal |
USB Type-C |
| Display Connector |
40-Pin LVDS |
| Audio Output |
3.5mm Audio Jack / Speaker Output |
| Speaker Power |
Up to 2.6W × 2 |
| Power Supply |
DC 5V |
| Standby Power Consumption |
<0.2W |
| Operating Temperature |
-20°C ~ +70°C |
| System Compatibility |
Windows / Android / Raspberry Pi |
| Certification |
CE / RoHS / CB |
Product Advantages
Stable HDMI Display Solution
The controller board supports HDMI signal input for stable and efficient display transmission, making it suitable for industrial display terminals, embedded monitor systems, and multimedia control applications.
The LVDS output interface supports reliable panel connectivity and consistent image performance.
Multi-Point Capacitive Touch Support
Integrated capacitive touch functionality enables responsive multi-touch interaction for smart control systems, interactive displays, industrial HMI equipment, and embedded touch applications.
The USB Type-C touch interface simplifies signal transmission and improves integration efficiency.
Broad System Compatibility
Compatible with multiple operating systems including:
- Windows
- Android
- Raspberry Pi
The board supports flexible integration into embedded systems, industrial control platforms, smart home devices, and commercial display equipment.
Compact & Efficient Design
The compact board structure supports embedded integration in space-constrained applications while maintaining stable display and touch performance.
Low standby power consumption helps improve energy efficiency in continuous-operation environments.
Audio Integration Support
The board includes audio output functionality with:
- 3.5mm headphone jack
- Speaker output connectors
- Dual-channel speaker support
Suitable for multimedia display systems and interactive commercial applications.
Industrial Operating Reliability
Supporting operating temperatures from -20°C to +70°C, the board is suitable for industrial environments and long-term operation applications requiring stable performance.

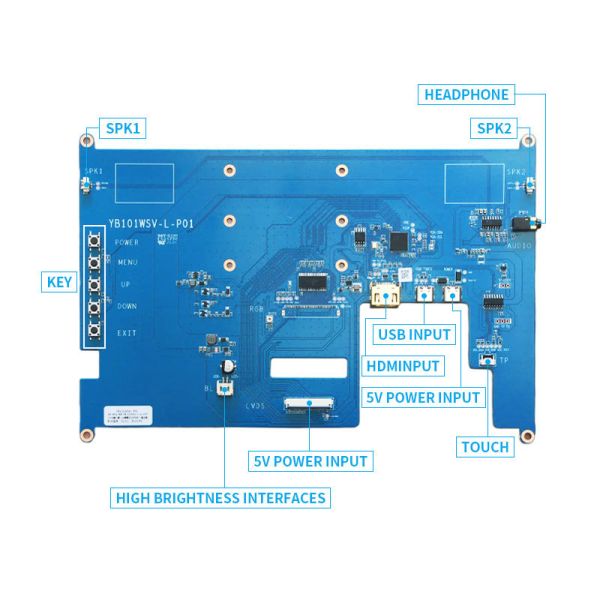

Interface Information
| Interface |
Description |
| CN1 |
HDMI Signal Input |
| J4 |
6-Pin FPC Capacitive Touch Interface |
| J5 |
USB Type-C Touch Signal Interface |
| J114 |
40-Pin LVDS Display Connector |
| J32 |
3.5mm Audio Output |
| J14 / J15 |
Speaker Output Connectors |
LVDS Interface Information
| Pin |
Signal |
Description |
| 1 |
VCOM |
Common Voltage |
| 2-3 |
VDD |
Digital Circuit Power |
| 5 |
RESET |
Global Reset Signal |
| 6 |
STBYB |
Standby Control |
| 7 |
GND |
Ground |
| 8-40 |
Various |
LVDS Differential Signals & Control Lines |
Application Areas
The YB101WSVL-P01 is suitable for:
- Industrial control terminals
- Embedded display systems
- Smart home control panels
- Raspberry Pi display projects
- Commercial touch displays
- Interactive display systems
- Portable monitor solutions
- Medical display equipment
- Self-service terminals
- Multimedia control systems
Customization Support
Customization services available for OEM and integration projects:
Board Customization
- Board dimensions and structure adjustment
- Interface layout modification
- Connector configuration optimization
Branding Services
- Custom logo printing
- Silk screen customization
Interface Expansion
- Additional interface support
- VGA or custom connector integration
- Signal interface modification
Performance Optimization
- Higher resolution support
- Frame rate optimization
- Driver IC configuration upgrades
Quality Assurance
Each controller board undergoes inspection and functional verification before shipment to support stable operation and reliable display performance.
Verification procedures include:
- Signal transmission testing
- Touch functionality verification
- Power stability inspection
- Interface connection testing
- Packaging and transportation protection checks
OEM & Technical Support
Technical assistance and customization support available for long-term integration projects:
- Hardware integration assistance
- LCD compatibility consultation
- Touch configuration support
- Driver optimization assistance
- Embedded system integration support
Packaging & Logistics
- Professional export packaging
- Anti-static protective handling
- Secure transportation support
- International logistics solutions available
Supply Support
- Sample orders available
- Flexible MOQ support
- Stable production capacity
- OEM / ODM cooperation support
- Technical integration assistance
Why Choose YB101WSVL-P01
The XXT YB101WSVL-P01 combines stable HDMI display control, capacitive touch integration, low power consumption, and broad system compatibility in a compact industrial-grade LCD driver board solution.
It is an ideal choice for embedded displays, industrial control systems, smart terminals, and commercial touch applications requiring reliable performance, efficient integration, and flexible customization support.
